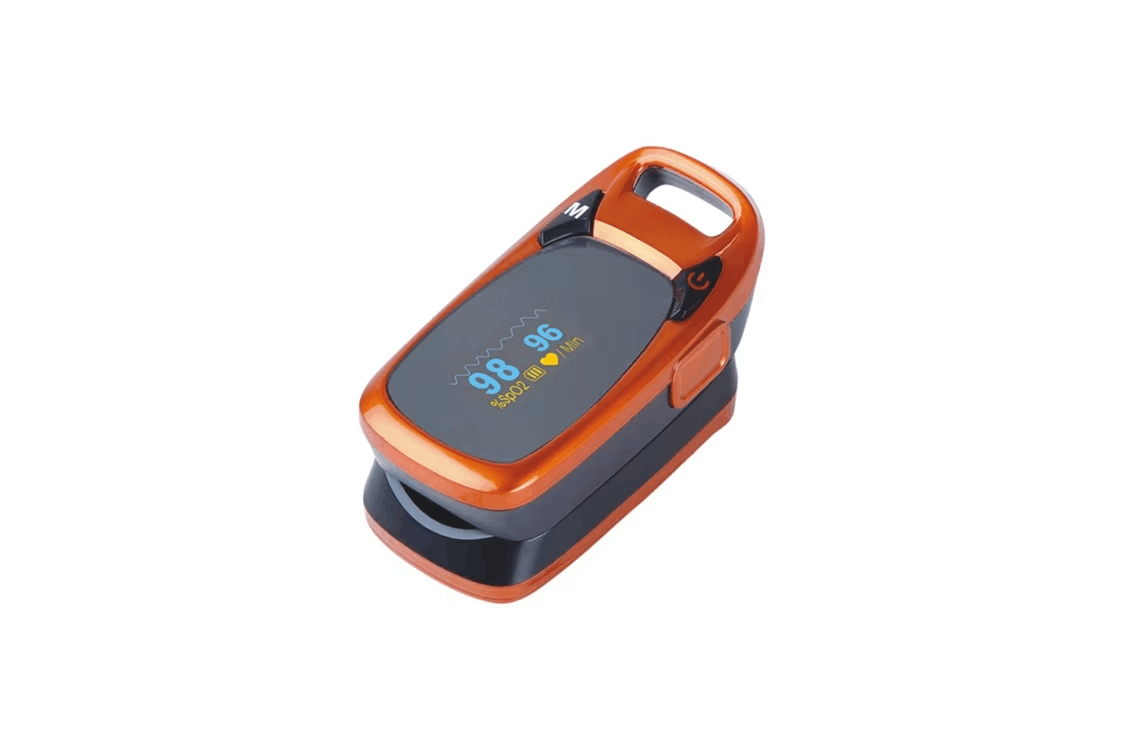

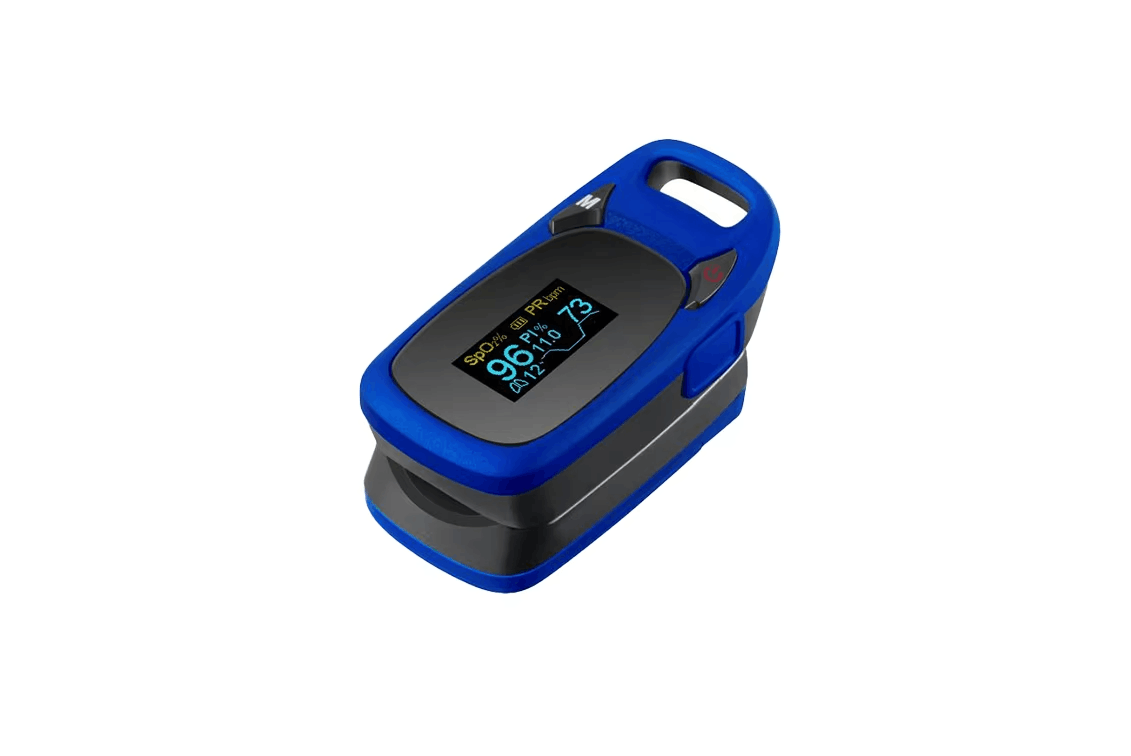

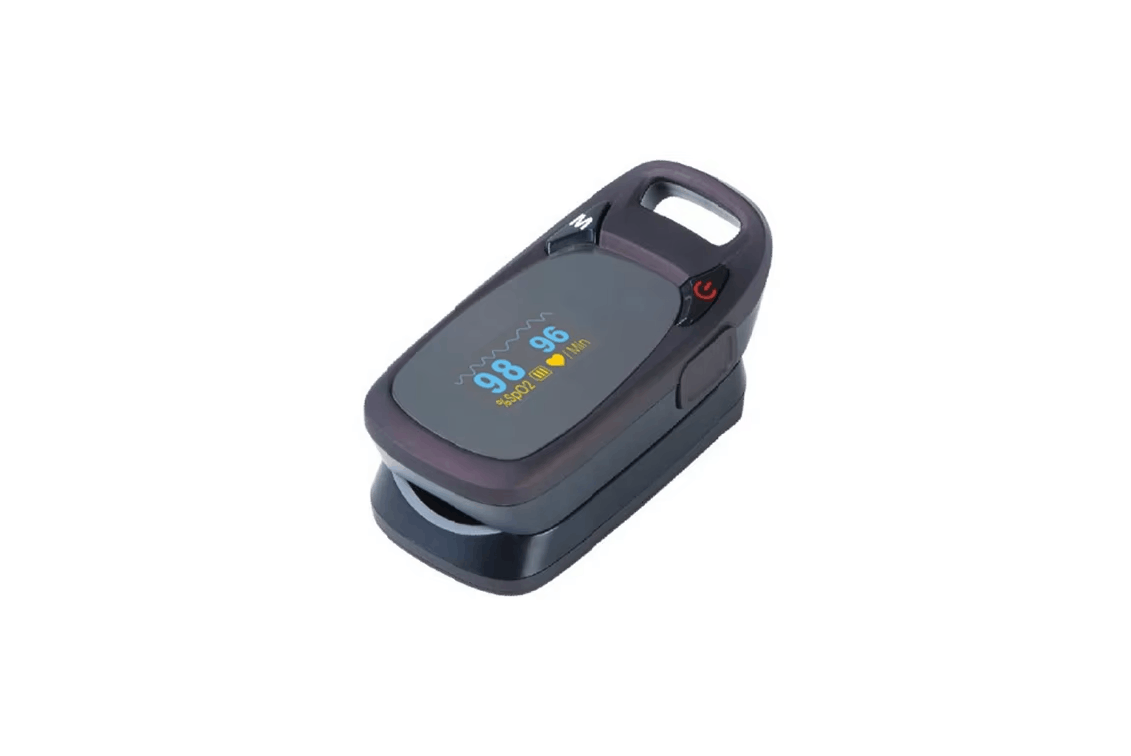

Fingertip Pulse Oximeter (A320)

Product introduction:

A320 Fingertip pulse oximeter, based on digital technology, is intended for noninvasive spot-check measurement of SpO2 and pulse rate. The product is suitable for home, hospital (including clinical using in internist/surgery, anesthesia, pediatrics and etc.), oxygen bar, social medical organizations and physical care in sports.

Main Features:

■ Lightweight and Easy-To-Use.

■ Color OLED display, simultaneous display for testing value and plethysmogram.

■ Adjust the parameters in friendly menu.

■ Big font mode is convenient for user reading the results.

■ Manually adjust the direction of interface.

■ Low Battery voltage indicator.

■ Visual alarm function.

■ Real-time spot-checks.

■ Automatically switch off when no signal.

■ Standard two AAA 1.5V Alkaline bаttеrу is available for power supply.

■ Advanced DSP algorithm inside minish the influence of motion artifact and improve accuracy of low perfusion.

Specification:

1. Two AAA 1.5v batteries can be operated continuously for 30 hours normally.

2. Hemoglobin saturation display: 35-100%.

3. Pulse rate Display: 30-250 BPM.

4. Power Consumption: Smaller than 30mA(Normal).

5. Resolution:

    a. Hemoglobin Saturation (SpO2): 1%

    b. Pulse repetition rate: 1BPM

6. Measurement Accuracy:

    a. Hemoglobin Saturation(SpO2 ): (70%-100%): 2% unspecified(≤70%)

    b. Pulse rate: 2BPM

    c. Measurement Performance in Low perfusion Condition: 0.2%
